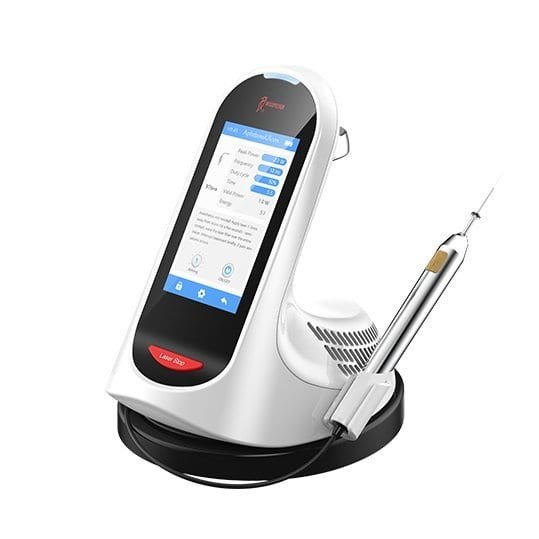

Woodpecker LX16 Plus Dental Laser Machine

Woodpecker LX16 Plus Dental Laser Machine

Woodpecker LX16 Plus is an advanced dental laser therapy device featuring innovative three-wavelength blue semiconductor laser technology. It is designed for versatile clinical applications including dental soft tissue surgery, endodontic and periodontal sterilization, peri-implantitis treatment, low-level laser therapy, oral ulcer management, and teeth whitening.

The device delivers remarkable clinical outcomes with minimal bleeding during procedures, significantly reduced postoperative swelling, less patient discomfort, and faster healing and recovery.

Features

• 450 nm Blue Laser: Ideal for soft tissue cutting, ablation, coagulation, and incision/excision. High absorption by hemoglobin allows effective treatment at low power with minimal thermal damage.
• 976 nm Infrared Laser: Deep tissue penetration for effective bacterial reduction in periodontal and endodontic treatments. Also suitable for high-power laser therapy (HPLT) and TMJ pain relief.
• 650 nm Red Laser: Used for low-level laser therapy (LLLT) or photobiomodulation (PBM), promoting wound healing and biostimulation.
• Minimally invasive treatment with excellent patient comfort
• Multiple emission modes for precise clinical control

Applications

• Dental soft tissue surgery
• Endodontic sterilization
• Periodontal sterilization
• Peri-implantitis treatment
• Low-level laser therapy (LLLT)
• Oral ulcer management
• Teeth whitening

Specifications

• Power adapter input: 100–240 Vac, 50/60 Hz, 2.5 A
• Wavelength & Power:
  • 450 ± 20 nm: Pmax = 3 W
  • 650 ± 20 nm: Pmax = 200 mW
  • 976 ± 20 nm: Pmax = 5 W
• Laser classification:
  • 976 nm: Class IV
  • 650 nm: Class II
  • 450 nm: Class III
• Emission modes: CW (continuous wave), chopped (1 Hz – 20 kHz)
• Aiming beam: 650 ± 20 nm / Pmax < 5 mW
• Rechargeable battery: 11.1 V / 2600 mAh × 2 (57.7 Wh)
• Charging time: Approx. 4 hours (up to 5 hours for first charge)
• Dimensions: 22 cm × 20 cm × 23 cm
• Weight: 1.5 kg
