Woodpecker Ai Pex Apex Locator With Pulp Tester

Woodpecker Ai-Pex Apex Locator with Pulp Tester

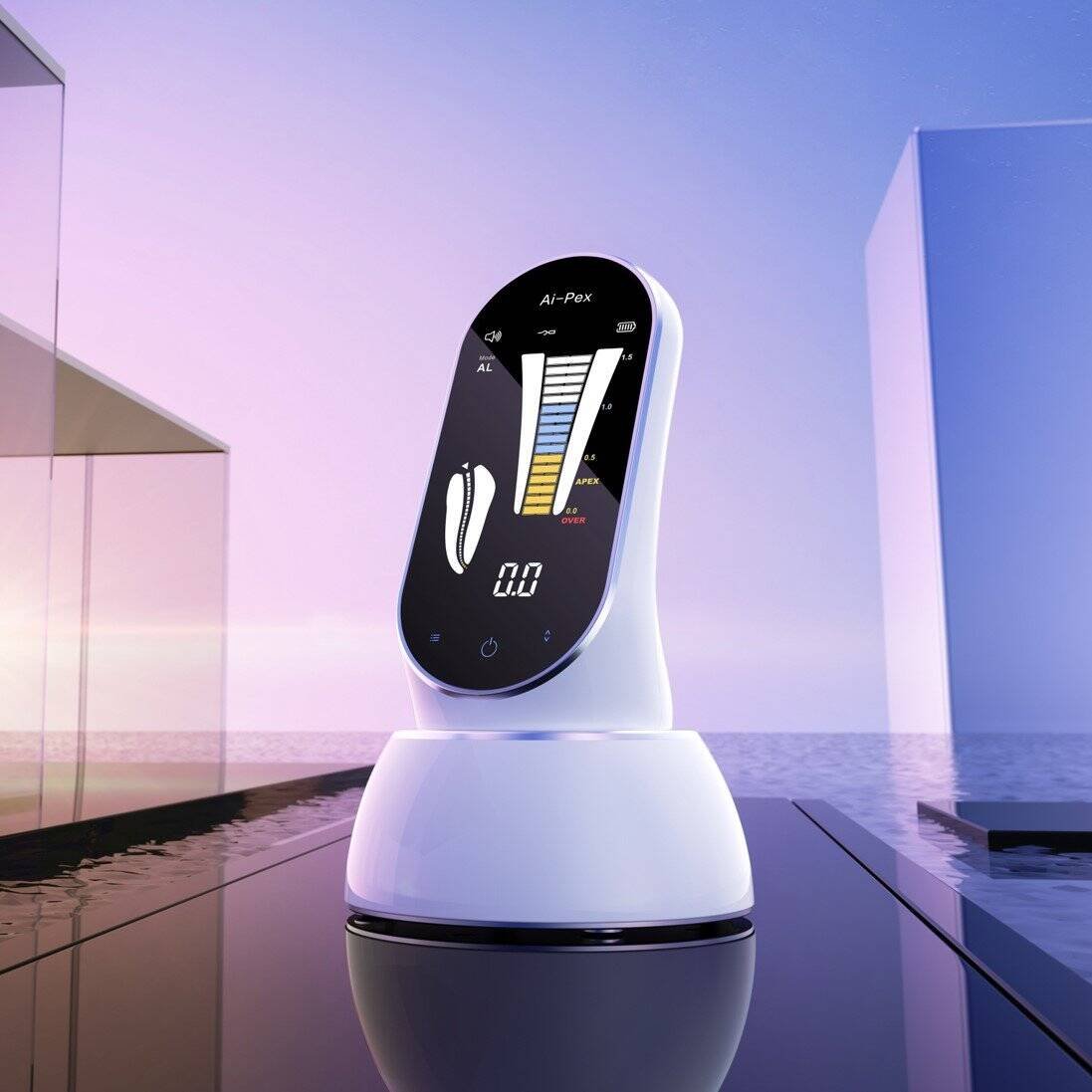

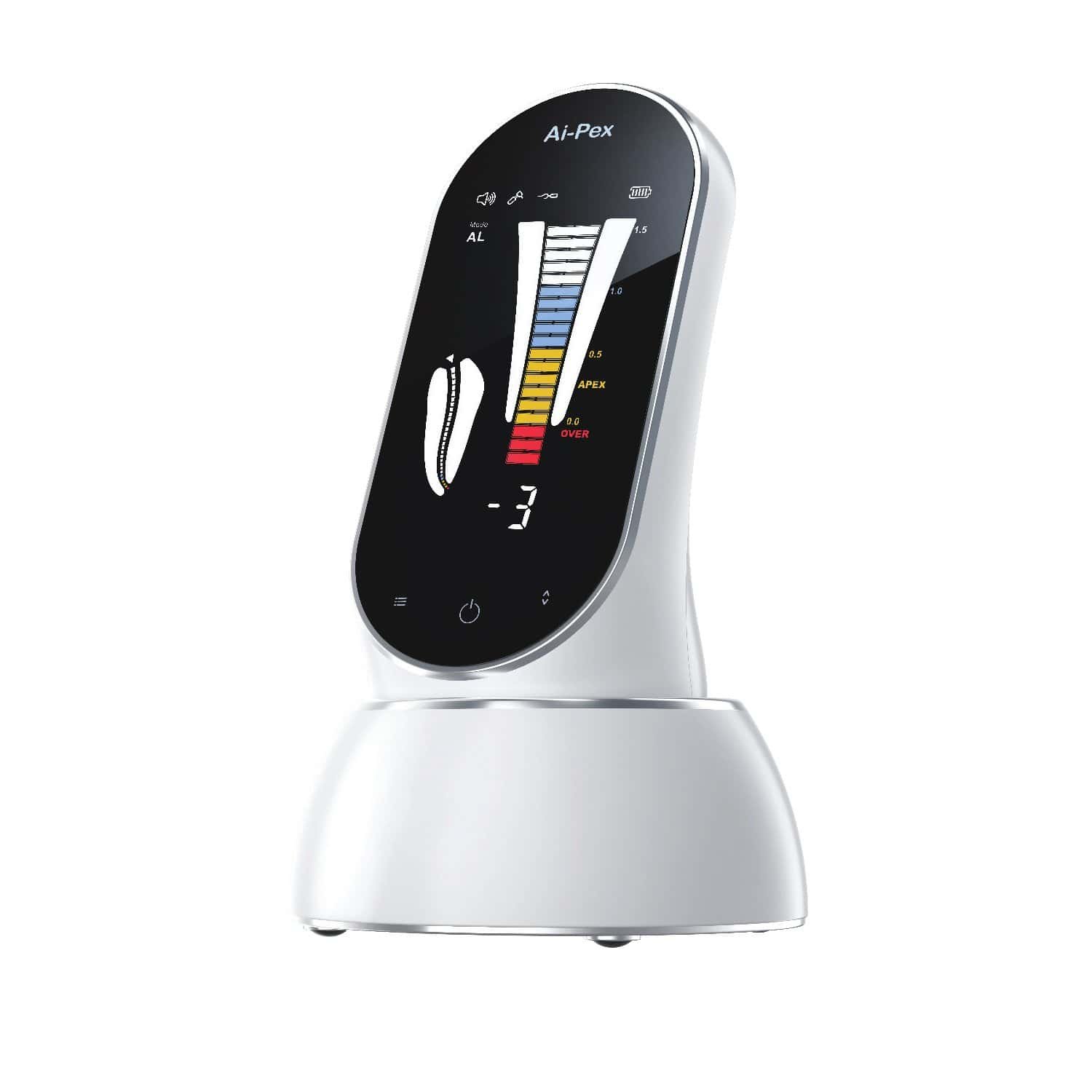

Woodpecker Ai-Pex is an advanced diagnostic endodontic device combining a high-accuracy apex locator with an integrated electric pulp tester. Featuring a 3.8-inch LCD touch screen, it enables precise determination of working length in a wide range of root canal anatomies and reliable assessment of pulp vitality.

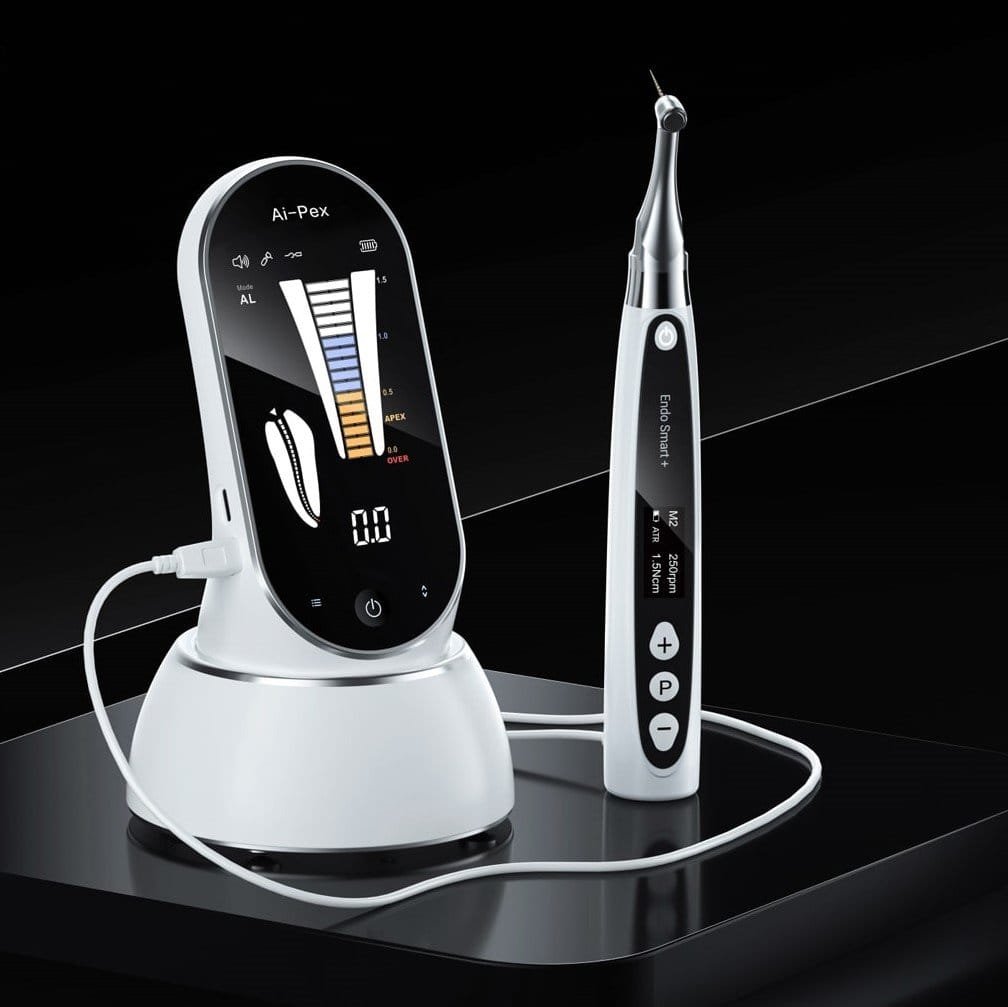

Ai-Pex delivers accurate measurements regardless of canal conditions—dry or wet—and is unaffected by blood or residual pulp. It supports real-time observation when connected to compatible endodontic motors, enhancing safety and efficiency during canal preparation.

Clinical Performance

• Accurate detection of the apical foramen in complex canals
• Reliable readings in wet or dry canals
• Audible guidance with increasing frequency as the file approaches the apex
• Continuous tone at apical stop for clear endpoint identification

Features

• 7th Generation apex locator with high accuracy
• 3.8" LCD touch screen
• Root canal apex finding and pulp vitality testing in one unit
• Constant current source for electric pulp testing
• Anti-interference software for increased accuracy
• Multi-frequency design for precise measurements
• Automatic calibration on startup
• Adjustable sound recognition
• Over 5 hours of wireless operation on full charge
• Unique magnetic swivel stand with 360° viewing
• Magnetic absorption base design
• Four working modes
• 6.2 seconds to reach maximum pulse intensity (PT mode)

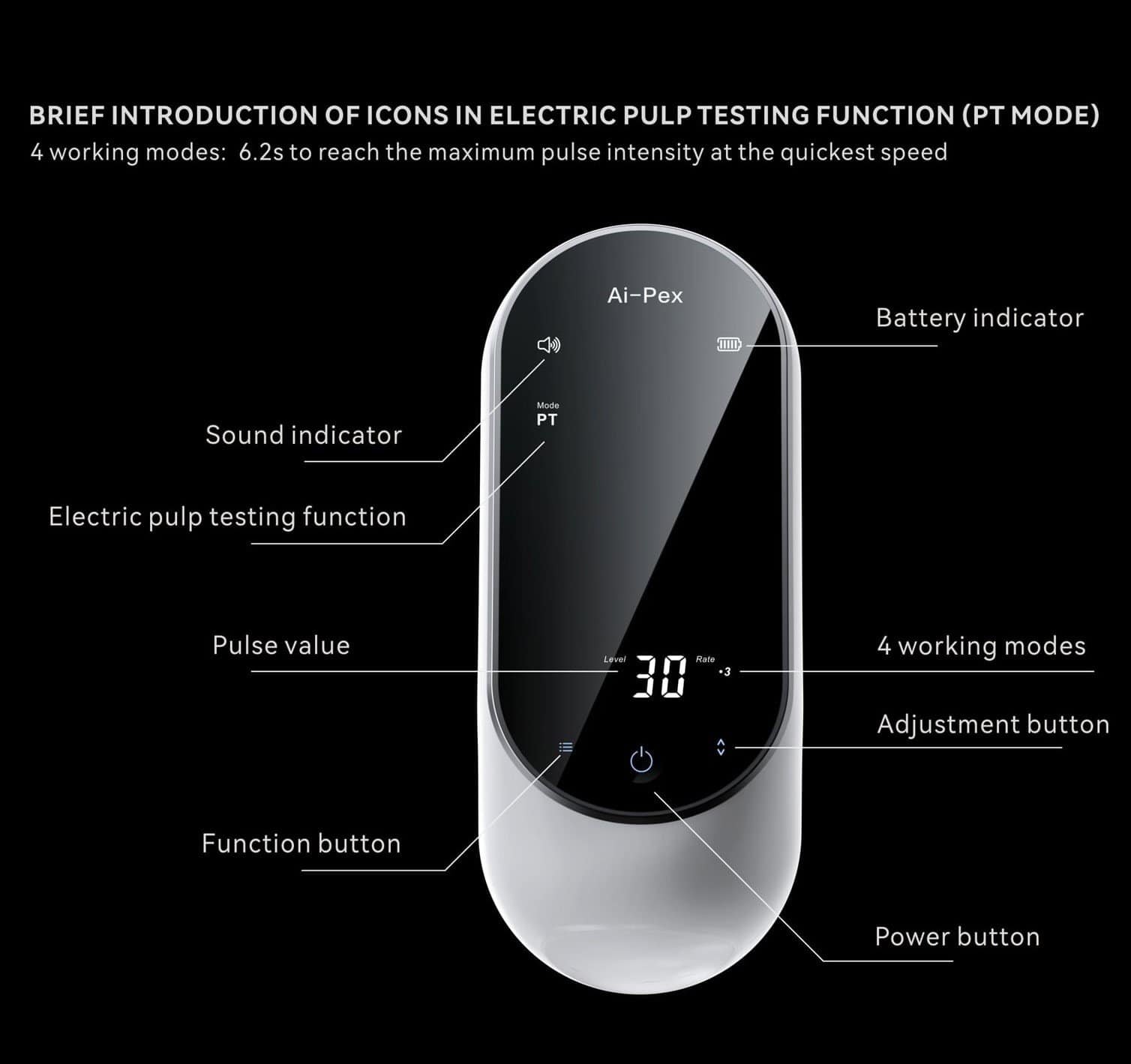

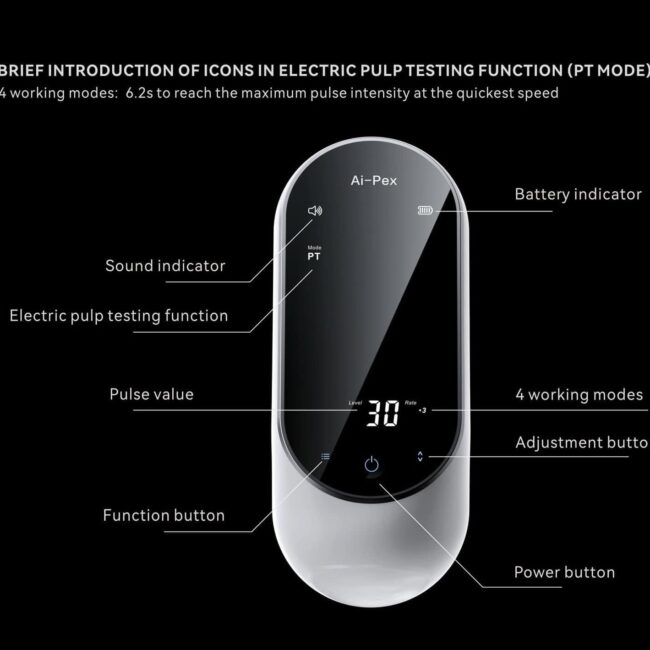

Directions for Use (Pulp Tester Mode)

• Long-press the function button to switch to PT mode
• Press the Speed button to select a suitable working mode
• Connect the lip hook and probe
• Apply a conductive agent (e.g., toothpaste) to the probe head
• Place the probe at the cervical third of the tooth
• Test the target tooth and an adjacent tooth separately
• Compare numerical values when the patient senses tingling to assess vitality

Technical Specifications

• Working Time: 5 hr 20 min
• Charging Time: 3 hours
• Battery: 3.7 V / 2000 mAh
• Input: ~100–240 V, 50/60 Hz, 0.4 A
• Power Consumption: 0.5 W
• Display: 3.8-inch LCD screen

Operating Conditions

• Temperature: -5°C to +40°C
• Relative Humidity: 30%–75%
• Atmospheric Pressure: 70 kPa – 106 kPa

Packaging

• 1 × Ai-Pex Main Unit
• 1 × Measuring Wire
• 4 × File Clips
• 5 × Hooks
• 2 × Touch Probes
• 2 × Pulp Tester Probes
• 1 × Adapter
• 1 × Tester
• 1 × Power Lead
