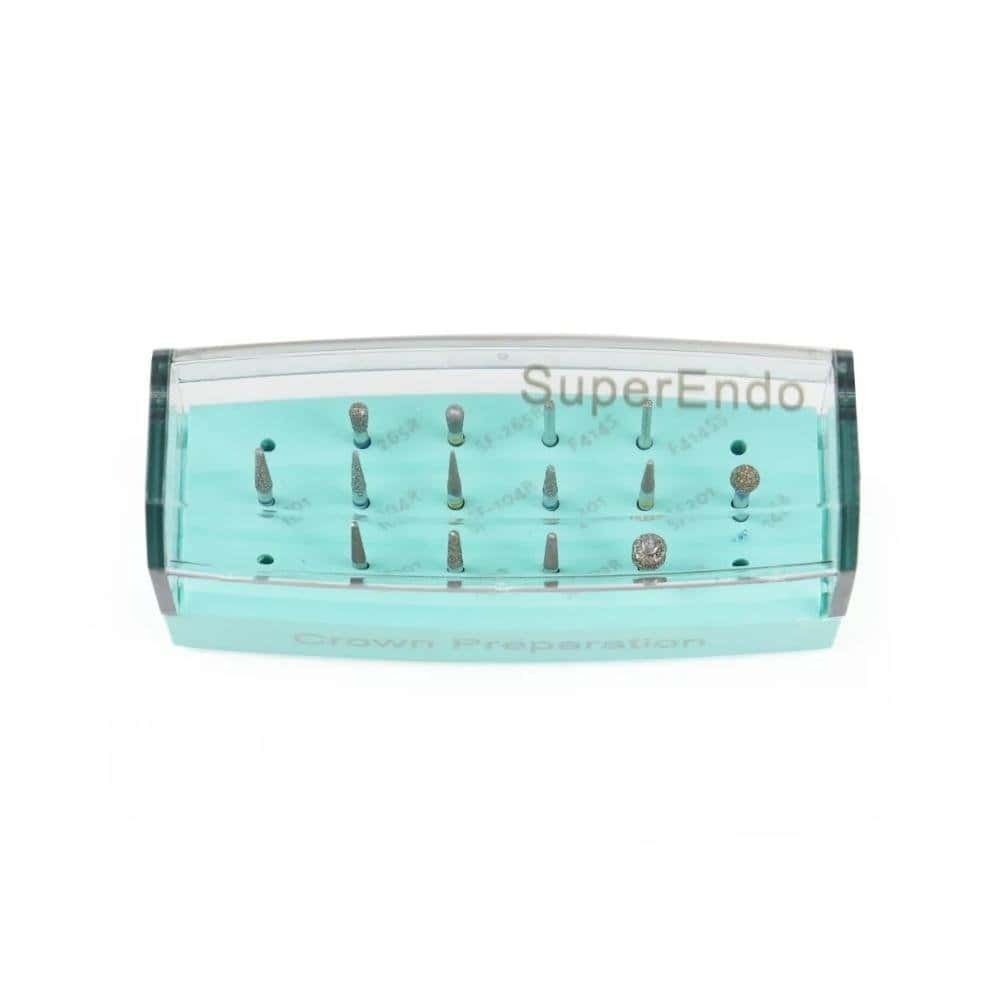

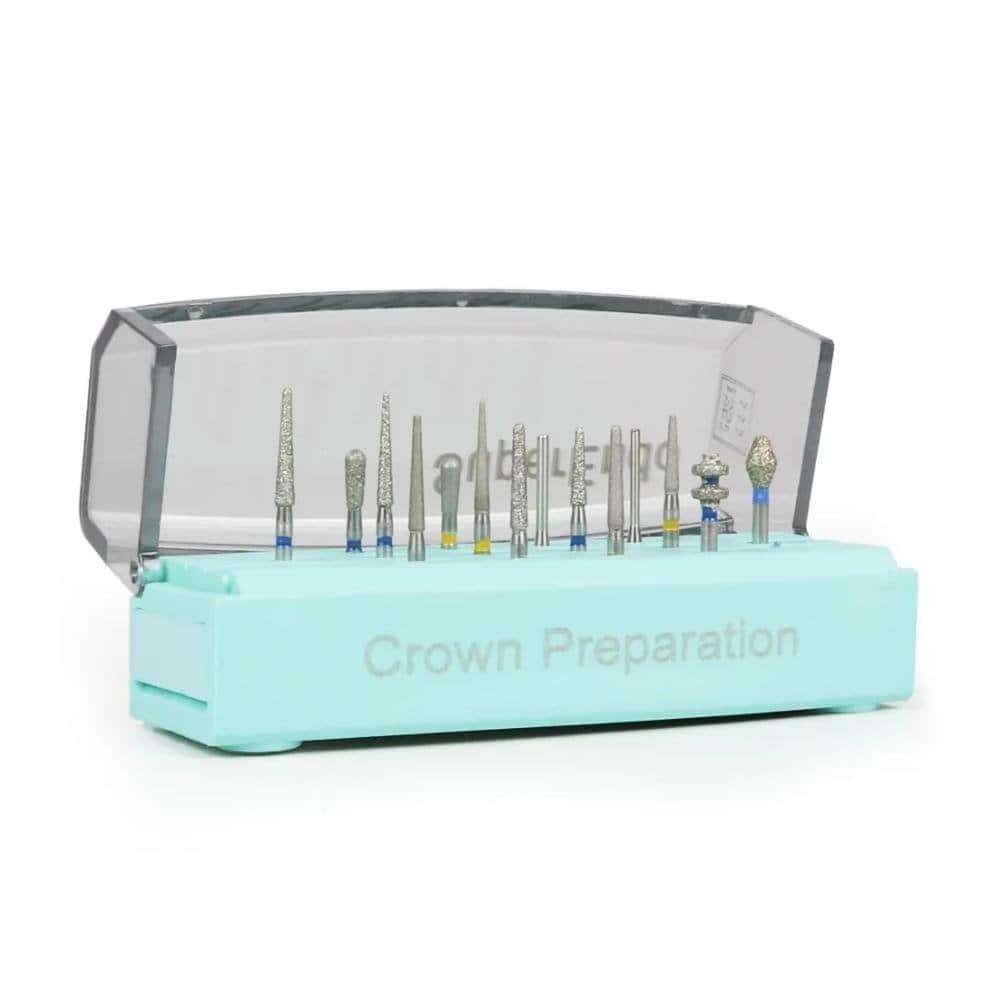

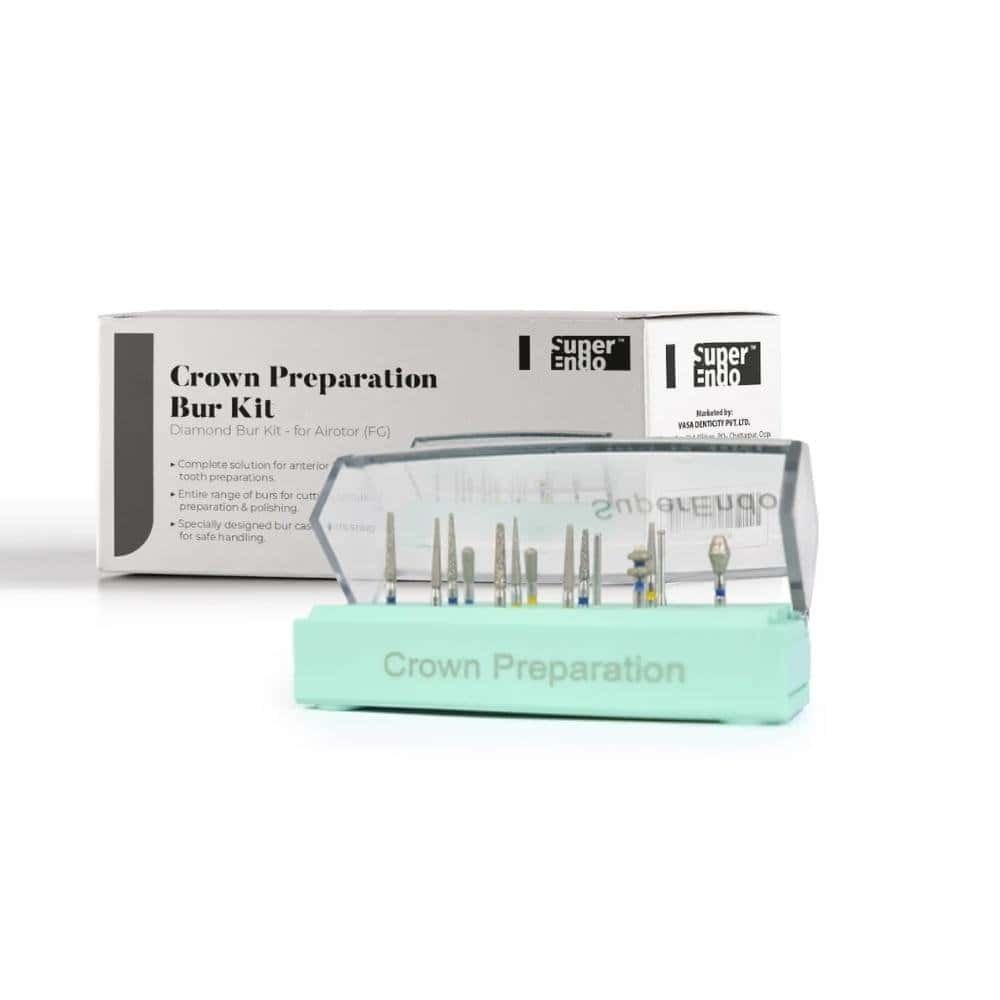

Super Endo Crown Preparation Bur Kit

Super Endo Crown Preparation Bur Kit

The SuperEndo Crown Preparation Bur Kit is designed to deliver speedy, simple, and accurate tooth preparation for a wide range of clinical applications, including crown and bridge restorations, veneers, and onlays. The carefully selected diamond burs enable precise tooth reduction while preserving healthy tooth structure.

The kit includes specially designed depth-cutting diamond points that allow easy and controlled creation of depth orientation grooves. In addition, two special tissue-protective end-cutting burs are included for shoulder preparation and finishing under gingival margins, minimizing the risk of soft tissue injury.

Features :

• High-quality diamond burs for efficient and precise tooth preparation
• Silicone inserts inside the bur block to hold burs securely
• Hygienically organized in a durable plastic bur block
• Includes tissue-protective end-cutting burs for safe subgingival finishing

Key Specifications :

• Shank type: Friction grip
• Material: Stainless steel shank coated with diamond particles
• Autoclavable up to 134°C
• Package dimensions: 4.4 × 3.5 × 2.4 inches

Color Band on Shank :

• Regular – Blue
• Superfine – Yellow

Set Contents (14 Burs) :

• 101 – Tapered flat-ended diamond point
• SF-102R – Tapered round-ended diamond point
• SF-265R – Round inverted cone
• SF-104R – Tapered ellipse
• 201
• F414S
• 265R
• 104R
• SF-201
• SF-101
• 102R
• F414SS
• 122
• 148

Packaging :

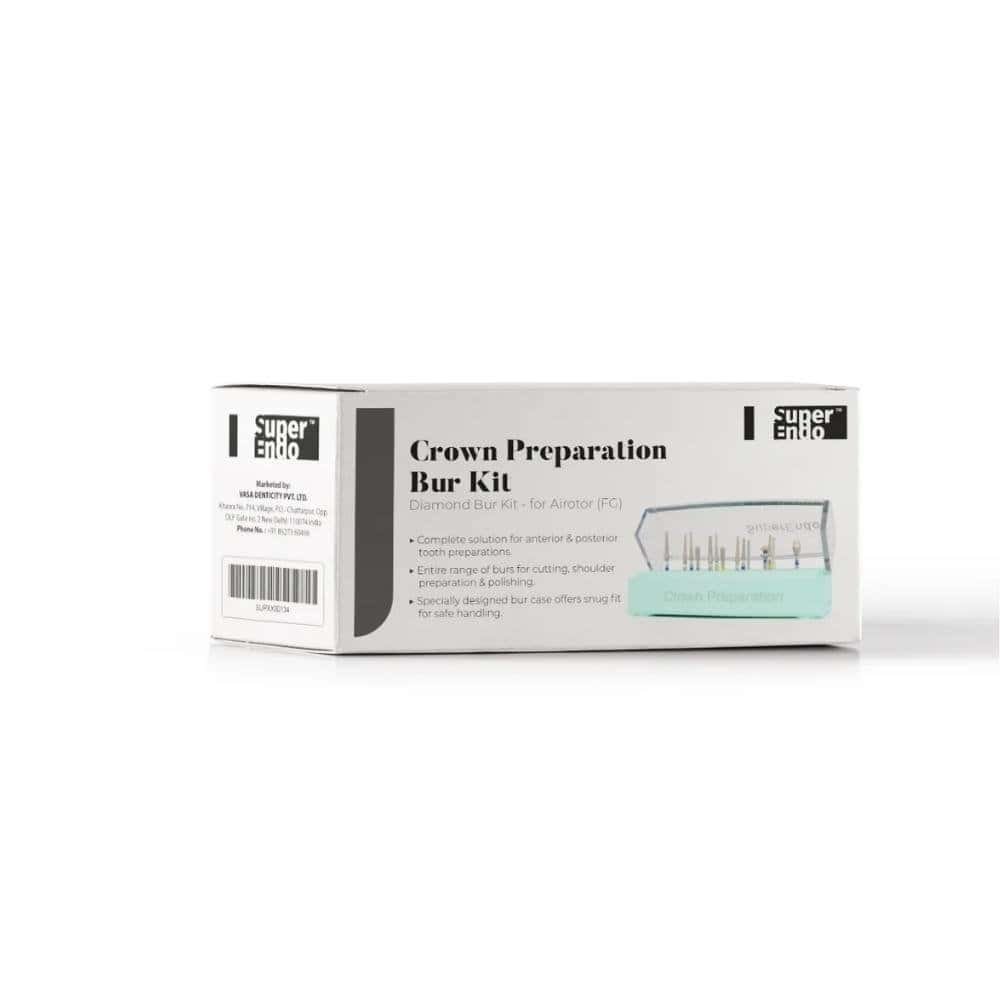

• 1 × SuperEndo Crown Preparation Bur Kit (14 Burs)

Direction to Use :

• Insert the instrument as deeply as possible into the chuck (Friction Grip).
• Set the handpiece to the required working speed before contacting the tooth.
• Apply a maximum operating force of 0.4 N and do not exceed 230,000 rpm.
• Activate water spray throughout the procedure (minimum 50 mL/min).
• Regulate water flow to avoid overheating or insufficient cooling.
• Use a dental dam whenever recommended.
• Use the full working length of the bur rather than only the tip.
• After preparation, remove the instrument and allow it to come to a complete stop.
• Wear gloves and safety glasses during use.

FAQs :

• Can these burs be autoclaved?
  Yes, the burs are autoclavable and reusable.
• How can instrument fracture be prevented?
  Avoid jamming or levering actions, do not exceed the recommended speed, and avoid applying excessive force. Always inspect burs for damage before use.
• When should Crown Preparation Burs be disposed of?
  Dispose of burs that are oxidized, blunt, eccentric, or visibly damaged.
