E Connect Pro Endomotor With EPex Pro Apex Locator

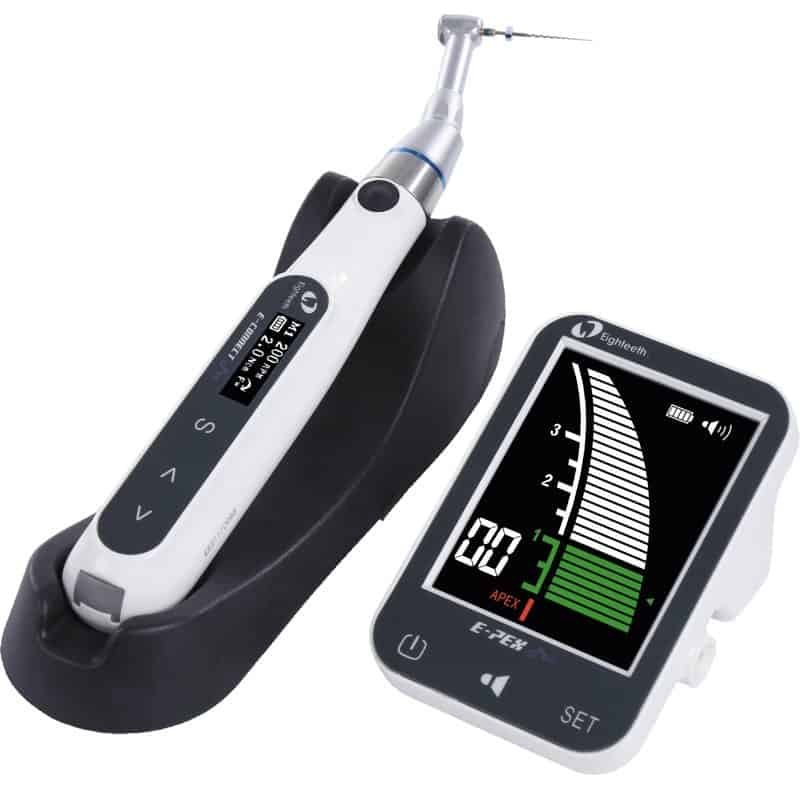

Eighteeth Medical E-Connect Pro Endomotor with E-Pex Pro Apex Locator

The Eighteeth Medical E-Connect Pro is a feature-rich and cost-effective cordless endomotor designed to enhance precision, safety, and efficiency in endodontic procedures. Its 340-degree rotatable contra-angle allows easy viewing of the LCD display during treatment, improving ergonomics and workflow.

When integrated with the Eighteeth Medical E-Pex Pro Apex Locator, the system offers advanced apex-controlled motor functions that significantly reduce the risk of file separation while improving treatment accuracy.

E-Connect Pro Endomotor – Overview

• Cordless endomotor with programmable torque, speed, and motion modes
• 340° rotatable contra-angle for improved LCD visibility during procedures
• Supports continuous rotation and reciprocation modes
• Designed for both rotary and reciprocatory file systems

Additional E-Connect Pro Functions

• Continuous forward rotation
• Continuous reverse rotation
• Reciprocation mode for regular rotary files (e.g., Neoendo Flex)
• Dedicated reciprocation mode for reciprocatory files
• Torque reversal for enhanced file safety

Smart Functions (When Integrated with E-Pex Pro Apex Locator)

• Auto Start / Stop: Motor starts when the file enters the canal and stops when withdrawn
• Apical Reverse: File reverses automatically upon reaching the preset apical point
• Apical Slow Down: Motor speed reduces near the apical region to protect the cemento-dentinal junction
• Apical Torque Reduction: Torque decreases at the apical third to minimize file separation

E-Pex Pro Apex Locator – Overview

• Bright LCD display with color-coded measurements
• White strips indicate approach to apical foramen
• Green strips indicate proximity to apical foramen
• Red strips with audible beep indicate file beyond apical foramen
• Adjustable keys and alarm volume

Features

Eighteeth Medical E-Connect Pro Endomotor

• Continuous mode with 6 programmable memory settings
• Reciprocation mode with 5 options (4 forward, 1 reverse)
• Auto torque reverse to reduce instrument separation risk
• 340° adjustable head for easy access to all teeth
• Miniature head for excellent visibility
• Ambidextrous design for left- and right-handed users
• In-built torque calibration system

Eighteeth Medical E-Pex Pro Apex Locator

• 4th-generation multi-frequency impedance measurement technology
• Bright and clear LCD display
• Highly precise apical foramen localization in wet and dry canals
• Automatic calibration for stable and accurate readings
• Compact and stable design for flexible clinical use

Technical Information

E-Connect Pro Endomotor

• Model: E-CONNECT Pro
• Rotational speed range: 120 – 650 RPM
• Speed values: 120, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650
• Torque range: 0.5 – 4.0 N·cm
• Torque values: 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0
• Adaptor working voltage: AC 100–240 V, 50/60 Hz
• Battery capacity: 1600 mAh (upgradeable to 2000 mAh)

E-Pex Pro Apex Locator

• Model: E-PEX Pro
• Screen: 3.5-inch LCD
• Battery capacity: 1600 mAh
• Adaptor working voltage: AC 100–240 V, 50–60 Hz
• Dimensions: 95 mm × 65 mm × 20 mm

Warranty

• 12-month manufacturer/importer warranty applicable
• Service and warranty support handled directly by the manufacturer/importer
